In scrap metal recycling operations, the proper selection of a Hammer Shredder and Magnetic Separator directly dictates the purification efficiency of secondary raw materials and overall plant operating costs. When processing complex scrap steel, car bodies, and industrial swarf, procurement managers must precisely match rotor load and separation flow sheets based on material hardness, feed dimensions, and downstream melting specifications.
A well-configured Ferrous Metal Shredding Line must not only deliver high wear resistance within the shredding chamber under continuous heavy impact, but also balance target discharge sizing with power consumption through upstream-downstream integration. Jushengding combines high-efficiency physical size reduction with precision magnetic separation via modular engineering and smart regulation systems, delivering stable conversion from bulky scrap into high-purity, clean metal.
| Process Stage | Target Feed | Discharge or Separation Characteristics | Matched Components |
|---|---|---|---|
| Primary Coarse Shredding | Heavy scrap, car bodies | Shearing, tearing, and volume reduction | Heavy-duty rotor assembly |
| Secondary Fine Crushing | Industrial turnings, structural parts | Uniformly sized scrap fragments | Special composite wear parts |
| End-Stage Separation | Mixed ferrous scrap | High-purity clean metals | High-intensity dry magnetic separator |

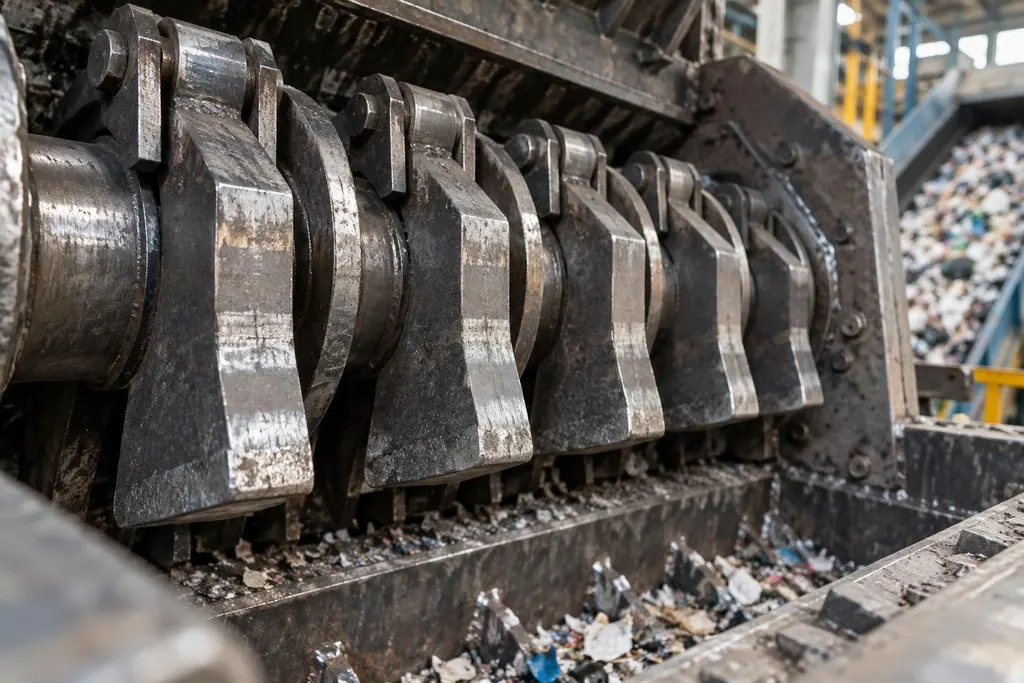

1. Hammer Shredder Operating Principles and Critical Wear-Resistant Components
Featuring a high-torque rotor and proprietary alloy tools, the Hammer Shredder readily processes demanding feedstocks such as car bodies and industrial scrap steel through high-speed impact, compression, and shearing forces. An integrated intelligent monitoring system tracks operating loads in real time and automatically optimizes shredding parameters, driving up throughput by 30% while effectively curbing tool wear rates.
The shredded metal fragments feature uniform sizing, substantially increasing bulk density for seamless downstream sorting and beneficiation. This homogeneous output reduces melting energy consumption by 20% for end users such as steel mills, maximizing the commercial value of recycled metals.

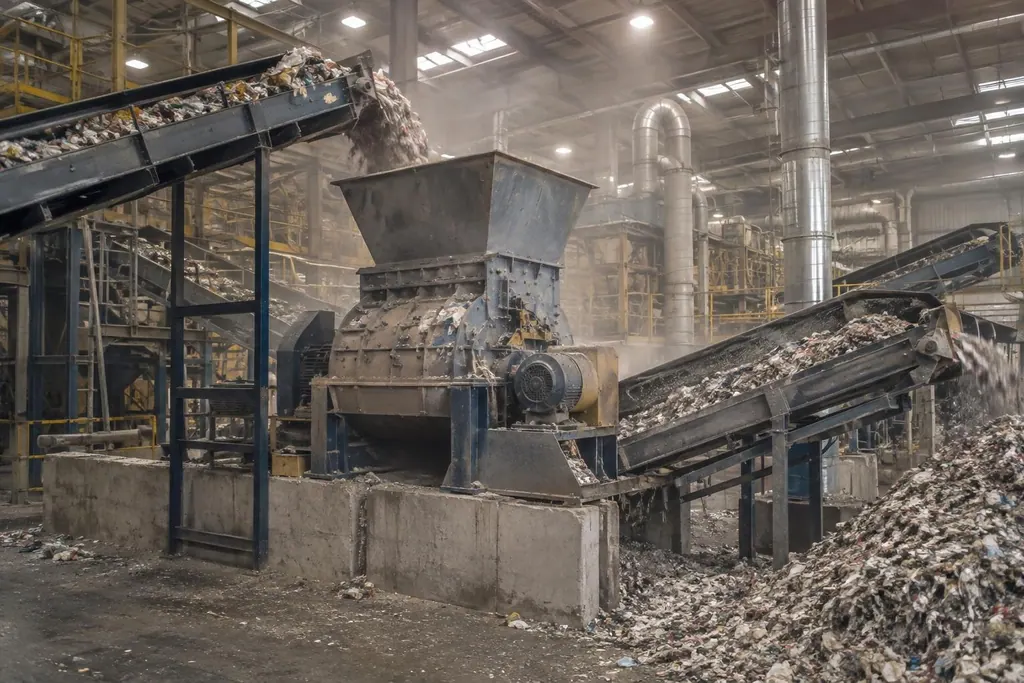

2. Energy Consumption and Wear Control Across Diverse Scrap Metal Profiles
When handling mixed recycled feed streams composed of electronic scrap, industrial metal residues, and composite structural parts, shredding equipment must withstand relentless abrasion on hammers and wear liners caused by high-hardness metals. The system utilizes special composite wear-resistant materials paired with a modular configuration to process varied metal feedstocks with precision, safeguarding plant availability under extreme duty cycles.
Compared to primary mineral smelting, processing scrap steel using Jushengding metal recycling technology reduces energy consumption by more than 70%. Pairing advanced sensor-based sorting with energy-efficient shredding reduces power demand by 30% while achieving recovered metal purities of over 98%, helping recyclers eliminate valuable raw material losses.
3. Upstream-Downstream Magnetic Separator Integration for Ferrous Metal Shredding Lines
Throughout a complete Ferrous Metal Shredding Line, harmonizing processing cycles between upstream shredding and downstream sorting is vital. Material discharged from the Hammer Shredder is routed directly to high-gradient Magnetic Separators for dry extraction, selectively capturing ferrous fractions to achieve high-efficiency liberation between steel products and non-ferrous impurities.
The complete line supports flexible downstream sorting machine configurations tailored to specific material characteristics. Utilizing smart sensing technologies to monitor separation circuits in real time, the system automatically adapts operating parameters to fluctuating feed streams. The integrated circuit reduces power consumption by 15% while improving recovery yields and maintaining recovered metal purities above 98%, enabling standardized full-process recycling operations.
Operating Conditions and System Configurations for Ferrous Metal Shredding Line
Processing high-volume light scrap such as baled bundles and car bodies requires pre-shredding paired with high-inertia rotors for compression and tearing. These feeds have high bulk expansion and carry paint and residues, which risk blockages if fed directly into fine-crushing chambers. Sizing large scrap down into loose pieces first liberates the metal matrix from surface attachments, allowing downstream magnetic separators to run steadily.
Industrial metal turnings and mixed structural parts show sharp hardness differences, creating high-impact abrasive wear. Sizing these feeds requires adjusting rotor impact loads against the shear resistance of the incoming scrap. Crushing chambers need special composite wear liners to withstand continuous impact. Secondary crushing compacts the scrap into uniform fragments, which raises bulk density and cuts melting energy consumption at downstream steel mills by 20%.
For mixed ferrous scrap containing non-ferrous debris, mechanical sizing alone cannot achieve clean separation. The downstream end must integrate high-intensity dry magnetic separators. Once impact crushing fully liberates the feed, magnetic units pick up ferrous metals directly along the discharge flow. Soil, plastics, and dirt are stripped out to prevent non-metallic inclusions from entering recycled iron, keeping overall sorting purity above 98%.
Machine in Action
FAQ
- How can rotor overload be prevented when processing heavy scrap and car bodies?
- Procurement teams should assess feed geometry and specify automated control systems that monitor main-shaft load in real time. When oversized scrap enters the chamber, high-torque variable-frequency drives adjust the impact rhythm to prevent instantaneous stalling and curb wear on cutting tools.
- What operational benefits do shredded ferrous fragments deliver to steel melting?
- Repetitive hammer strikes compress the scrap into dense, uniform fragments, significantly raising furnace feed bulk density. Higher cleanliness and fewer inclusions reduce melting energy consumption by 20% for downstream mills while trimming transport and handling costs.
- How does a Ferrous Metal Shredding Line achieve high-purity iron recovery?
- Once the mill liberates the base metal from surface coatings, material moves directly across high-intensity dry magnetic separators. Sensor-guided controls balance crushing and separation rates across the line, maintaining ferrous recovery purity above 98%.
